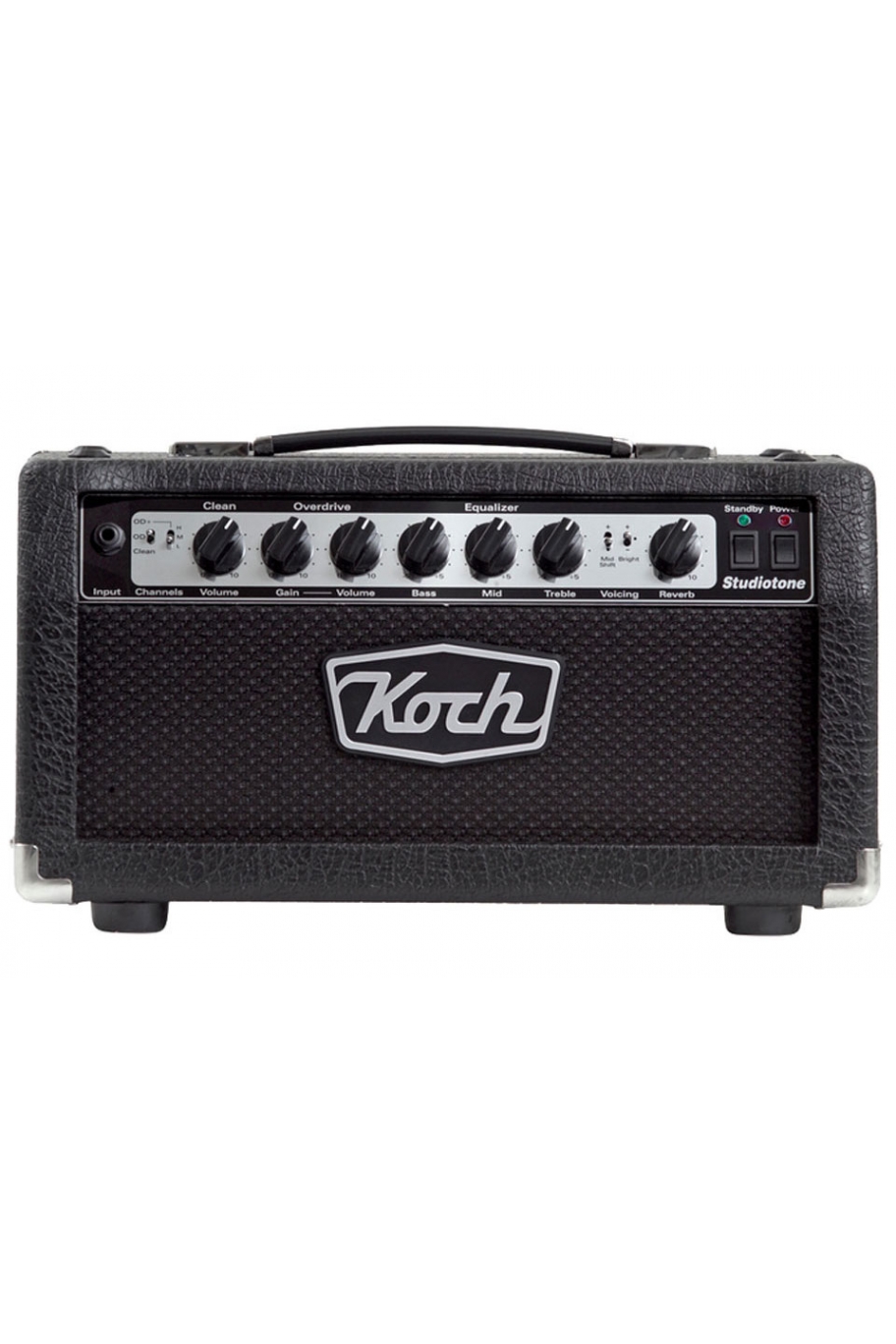

KOCH STUDIOTONE 20 HEAD OVERVIEW.
At first glance, you would be forgiven if you dismissed the Koch Studiotone as just another tiny combo. In classic Koch tradition, however, this compact power combo sounds much bigger, and has more features than one would suspect.
Beginning with two EL84 power tubes in Class A, a newly designed speaker and cabinet, three foot-switchable channels, and two powerful voicing switches, the Koch Studiotone sound brings to mind the British valve amps of the 60s. The three channels (Clean, Overdrive & Overdrive+) take you from round warm tones to saturated EL84 overdrive & compression. The 2-way ‘Mid Shift’ allows you to boost the mid frequencies around 800 Hz and the 3-way ‘Bright’ switch allows you to cut or boost the high frequencies for fine-tuning the top end. Some of the big surprises are left for the back panel though, and a quick inspection reveals a serial effects loop, a recording output with microphone placement and cabinet style simulators, two line outputs (one unfiltered and one low level) and a ‘Headphone Out’ jack. Speaker outputs at 4, 8, and 16 Ohm allow for any combination of speakers, and the built-in Power Soak and Speaker on/off switch allow the amp to be played with the speaker turned off for recording or headphone use. There is also a short scale spring reverb tank, with front-mounted level adjustment.
We believe the Koch Studiotone is one of the most versatile and compact guitar amplifiers on the market today.
KOCH STUDIOTONE HEAD SPECIFICATIONS.
3 channels (Clean, Overdrive & Overdrive boost) foot-switchable
One set of passive bass-mid-treble tone controls
Two front-panel voicing switches
(mid-shift 2 way, bright 3 way) for all channels
4, 8, & 16 Ohm speaker outputs plus speaker on/off switch
Serial effects loop (10 dBV signal level)
Recording output with speaker simulation and 2 voicing filters
Direct outputs (non-filtered, clean channel & headphone)
Short scale three spring reverb tank
2 way footswitch included
Dimensions 50 cm w x 28 cm d x 47 cm h
Weight 12 kg
